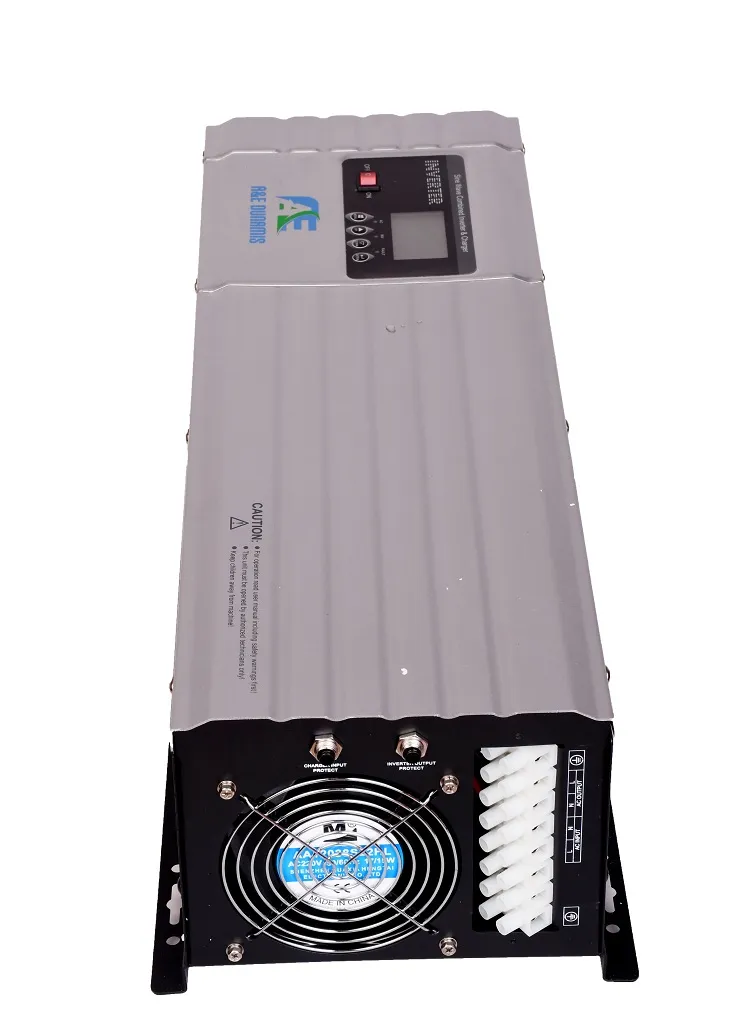

A&E 7.5KVA 48V PRO INVERTER

A&E 7.5KVA 48V PRO INVERTER

Availability:

Out of stock

Compare

 A&E 7.5KVA/48V Hybrid inverter with inbuilt 80ah MMPT charge controller.



A&E 7.5KVA/48V  Transformerbase Hybrid Inverter with inbuilT 80am MPPT Charge Controller is a multi-functional inverter/charger, combining functions of inverter, solar charger, and battery charger to offer uninterruptible power support in a portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.



A&E 7.5KVA/48V  Transformerbase Hybrid Inverter with inbuilt 80am MPPT Charge Controller

Features:

  • Pure sine wave solar inverter
  • Output power factor 1
  • Built-in 80A MPPT solar charger
  • Built-in anti-dusk kit for harsh environment
  • Support parallel operation up to 3 units (available for 4KW-12KW 48V)
  • WIFI remote monitoring (optional)
  • Compatible to generator

A&E 7.5KVA/48V  Transformerbase Hybrid Inverter with inbuilt 80am MPPT Charge Controller



Applications

  • Home Appliances
  • Office Equipment
  • Medical Equipment
  • Sensitive Equipment
  • General Use

A&E 7.5KVA/48V  Transformerbase Hybrid Inverter with inbuilt 80am MPPT Charge Controller

₦520,000.00 ₦840,000.00

Out of stock

PRODUCT SPECIFICATIONS



MODEL

PV35 PRO- 4KPV35 PRO- 5KPV35 PRO- 6KPV35 PRO- 8KPV35 PRO- 10KPV35 PRO- 12K
Nominal Battery System Voltage24V48V24V48V48V48VDC48VDC48VDC












INVERTER OUTPUT

Rated power4KW5KW6KW8.0KW10.0KW12.0KW
Surge rating12000VA15000VA18000VA24000VA30000VA36000VA
Capable of starting electric motor2HP2HP3HP4HP5HP6HP
WaveformPure sine wave same as input (bypass mode)
Nominal output voltage RMS220V 230V 240VAC (±10%RMS)
Output frequency50Hz 60Hz ± 0.3Hz
Inverter effciency(peak)>85%>88%
Line mode efficiency>95%
Power factor1.0
Typical transfer time20ms(max)


AC INPUT

Voltage230VAC
Selectable voltage range90-280 VAC (APL)
Frequency range50Hz 60Hz






BATTERY

Low battery voltage cutoff20-24VDC for 24VDC mode (40-48VDC for 48VDC mode)
Low battery voltage recover21-25VDC for 24VDC mode (42-50VDC for 48VDC mode)
High battery voltage cutoff30VDC for 24VDC mode (60VDC for 48VDC mode)
High battery voltage recover28.5VDC for 24VDC mode (57VDC for 48VDC mode)
Idle consumption-search mode<30W when power saver on<80W when power saver on




AC CHARGER

Output voltageDepends on battery type
Charger AC input breaker rating40A40A50A80A80A80A
Overcharge protection S.D.31.4VDC for 24VDC mode (62.8VDC for 48VDC mode )
Maximum charge current80A60A100A70A80A100A120A140A
BTSContinuous output powerYes Variances in charging voltage & S.D. voltage base on the battery temperature






BYPASS

&

PROTECTION

Input voltage waveformSine wave (grid or generator)
Nominal input frequency50Hz or 60Hz
Overload protection (SMPS Load)Circuit breaker
Output short circuit protectionCircuit breaker
Bypass breaker rating40A63A63A63A
Max bypass current40Amp80Amp








SOLAR CHARGER

Maximum PV charge current80A100A(200A optional)
DC voltage24V 48V Auto work48V
Maximim PV array power2000W4000W2000W4000W4000W5000W(10000W for 200A optional)
MPPT range @ operating voltage(VDC)32-145VDC for 24V mode,64-145V for 48V mode64~145VDC
Maximum PV array open circuit voltage145VDC
Maximum effciency>98%
Standby power consumption<2W






MECHANICAL SPECIFICATIONS

MountingWall mount
Dimensions (W*H*D)620*385*215mm670*410*215mm
Net weight (solar CHG) (kg)36414169+2.575.75+2.575.75+2.5
Shipping dimensions (W*H*D)755*515*455mm884*618*443mm
Shipping weight (Solar CHG) (kg)56616482.5+2.589+2.592+2.5






OTHER

Operation temperature range0°C to 40°C
Storage temperature-15°C to 60°C
Audible noise60dB MAX
DisplayLED+LCD
Loading (20GP/40GP/40HQ)140pcs 280pcs 320pcs
