1.Four Digit LED Display, Voltage Current And Power, High Precision And Features of Voltage Stabilization, Current Llimiting, And Simple Operation.

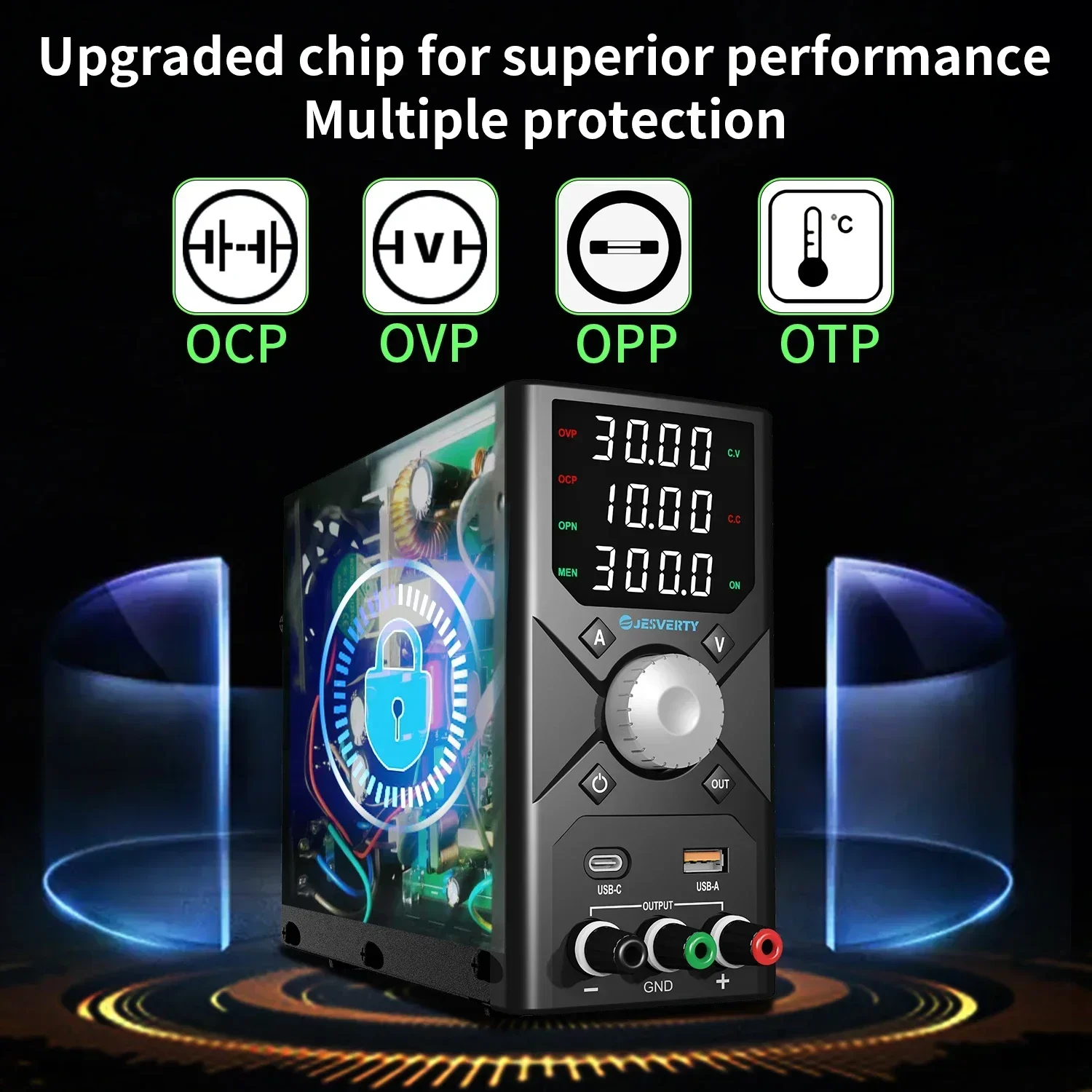

2.Have complete operating protection function
3.Highly efficient, low ripple, small volume, light weight
4.Display voltage, current,power, high precision
5.Voltage stabilization, current limiting, simple operation
6.Single voltage input(Dual voltage input easily destroys power supply)We will Send
the correct input voltage power supply according to your country
7.Temperature control fan heat dissipation, low noise
8.Double potentiometer more precise adjustment
9.Output Voltage ranges from 0 to rating voltage with continuous adjustment
10.Output current ranges from 0 to rating current with continuous adjustment
Model Name
SPS-3010
SPS-6005
SPS-12003
Output Voltage
0-30V
0-60V
0-120V
Output Current
0-10A
0-5A
0-3A
Output Power
300W
300W
360W
Input Voltage
230V±10% 50Hz or 115V±10% 60Hz
Working Temperatur
Working temperature:0℃-40℃;relative humidity:<80%RH
Storage temperature
Storage temperature:-10℃～70℃;relative humidity:<70%RH
Constant voltage CV
Voltage stability:0.1%±3mV
Load stability: 0.2%±3mV
Ripple voltage:≤0.5% Vp-p
0 to rated voltage continuously adjustable
Constant current CC
Current stability:0.1%±3mA
Load stability: 0.2%±3mA
Ripple current:≤0.5% Vp-p
Recovery time:≤500μS
Temperature coefficient:≤100ppm/℃
0 to rated current continuously adjustable
Display
LED digit display
Display accuracy:0.5%±digits
Display resolution: voltage0.1V/0.01V, current0.01A/0.001A
1. For Factory Production line test.
2. For Mobile phone ,computer repair, electrical appliance maintenance,Car DVD, car audio, etc.
3. For Product aging, electroplating,titanium oxide,electrolysis,such as resistors, jewelry,capacitors, relays, DC motors, LEDs, etc.
4. For Charge the battery (Include car battery).
5. For Laboratory, scientific research teaching,factory, maintenance power supply,school ,scientific research , production line use,etc.
6. For Security monitoring system, fire protection system, building automation system
【Packaging and after-sales】:
1X Power Adapter(EU/AU/UK/US we will send according to you country)
1X DC Power Supply
1X Black Output Line
1X Red Output Line
1X Instruction Book (English)
1X Pakcgae Box(Hard)
2X Protective Sponge
1X Certificate of Conformity(1 Year)
we provide lifelong technical support. If you are not satisfied with the product you have received, please feel free to contact us.
window.adminAccountId=2673291019;
Specifications:
Output Voltage Range: 0-30V, 0-60V, 0-120V
Output Current Range: 0-10A, 0-5A, 0-3A
Output Power: 300W, 300W, 360W
Input Voltage: 230V±10% 50Hz or 115V±10% 60Hz
Working Temperature: 0℃-40℃; relative humidity: <80%RH
Storage Temperature: -10℃～70℃; relative humidity: <70%RH
Features:
Regulated Dc Power Supply Dc Power Supply
**Precision and Versatility**
The Adjustable DC Power Supply is a state-of-the-art laboratory power supply designed for precision and versatility. With a four-digit LED display, it offers high precision voltage, current, and power readings, ensuring accurate measurements for your experiments or repairs. The power supply is encoder regulated, which means it maintains a stable output voltage and current, even under varying loads. This feature is particularly important for applications that require a constant power supply, such as electroplating, titanium oxide, or electrolysis processes.
**Reliable Performance and Safety**
The power supply is built with efficiency and safety in mind. It features a highly efficient, low ripple design that minimizes power loss and ensures a stable output. The small volume and lightweight construction make it easy to transport and set up in various environments. The built-in temperature control fan keeps the power supply cool, reducing noise and extending its lifespan. Additionally, the power supply is equipped with dual potentiometers for more precise adjustments, allowing for fine-tuning of voltage and current levels.
**Versatile Applications**
This laboratory power supply is suitable for a wide range of applications, from factory production lines to educational settings. It is ideal for charging batteries, including car batteries, and for powering electronic devices such as mobile phones, computers, and LEDs. The product is designed to meet the needs of professionals in fields like mobile phone repair, electrical appliance maintenance, and scientific research. It is also a valuable tool for security monitoring systems, fire protection systems, and building automation systems. The power supply comes with a comprehensive package, including a power adapter, output lines, and an instruction book, ensuring that users have everything they need to get started right away.
【Small and Light】: Jesverty SPS-X adjustable power supply is more compact, measuring only 7.28 (D) x3.35 (W) x6.29 (H) inches and weighing about 2.5 pounds, which can greatly save valuable space on the workbench. It is very suitable for applications such as laboratories, educational venues, factory manufacturing testing, maintenance repairs, battery charging, anodizing, electronic work DIY, etc.
【What you get and customer service】: 1 x SPS-X unit, 1 x power cord*, 1 set of test leads*, 1 x instruction manual (including contact information). We provide professional technical support. If you have any questions or questions about your order, please feel free to contact Jesverty customer service.
